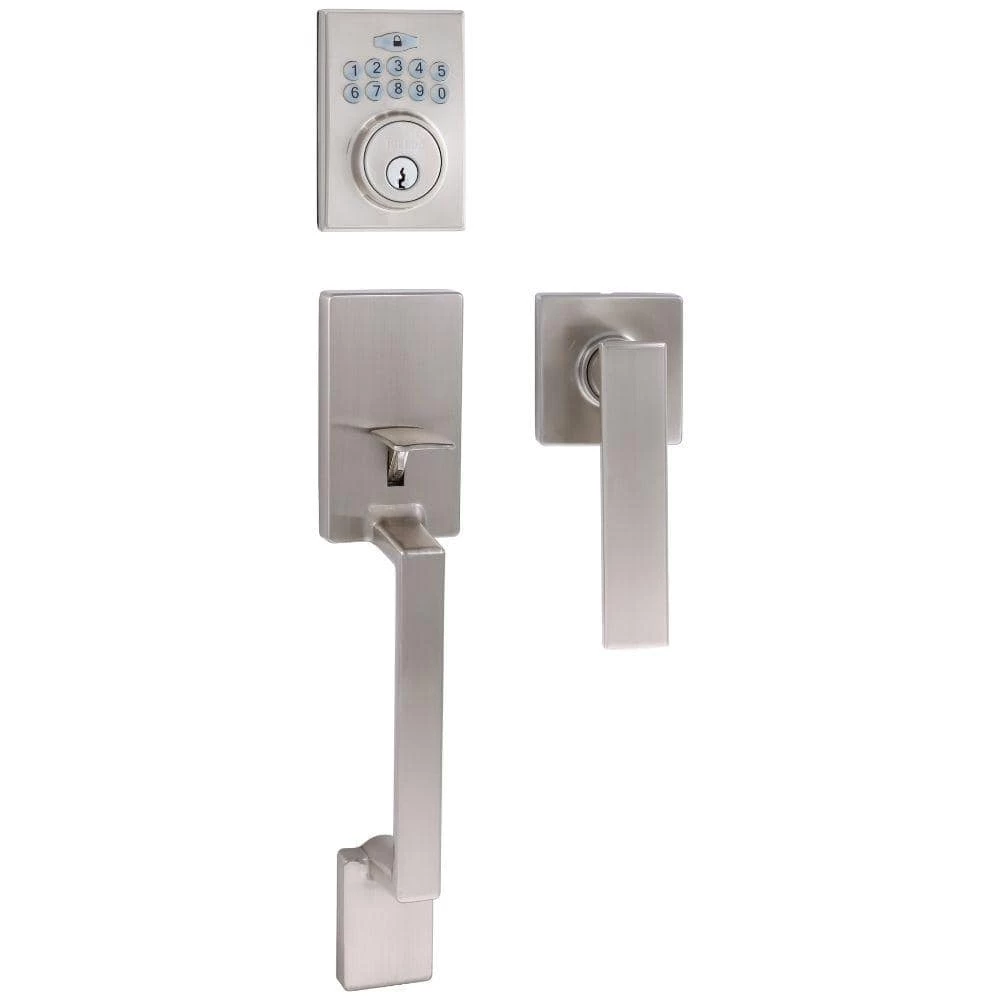

Toledo offers a well-integrated combination of craftsmanship and technology on their products such as the Satin Stainless Steel Electronic Handleset. This single cylinder deadbolt provides 2 types of access options, up to 10 user codes and with keys 3. Furthermore, this V160ELPUUS514 has an ANSI Grade 3 Compliance, Anti-Bumps System, and Universal Left or Rights Function, and all of this is powered with 4 double A (AA) alkaline batteries.
- ANSI Certified and Anti-Bump system
- Universal left and right function
- Up to 10 user codes to access

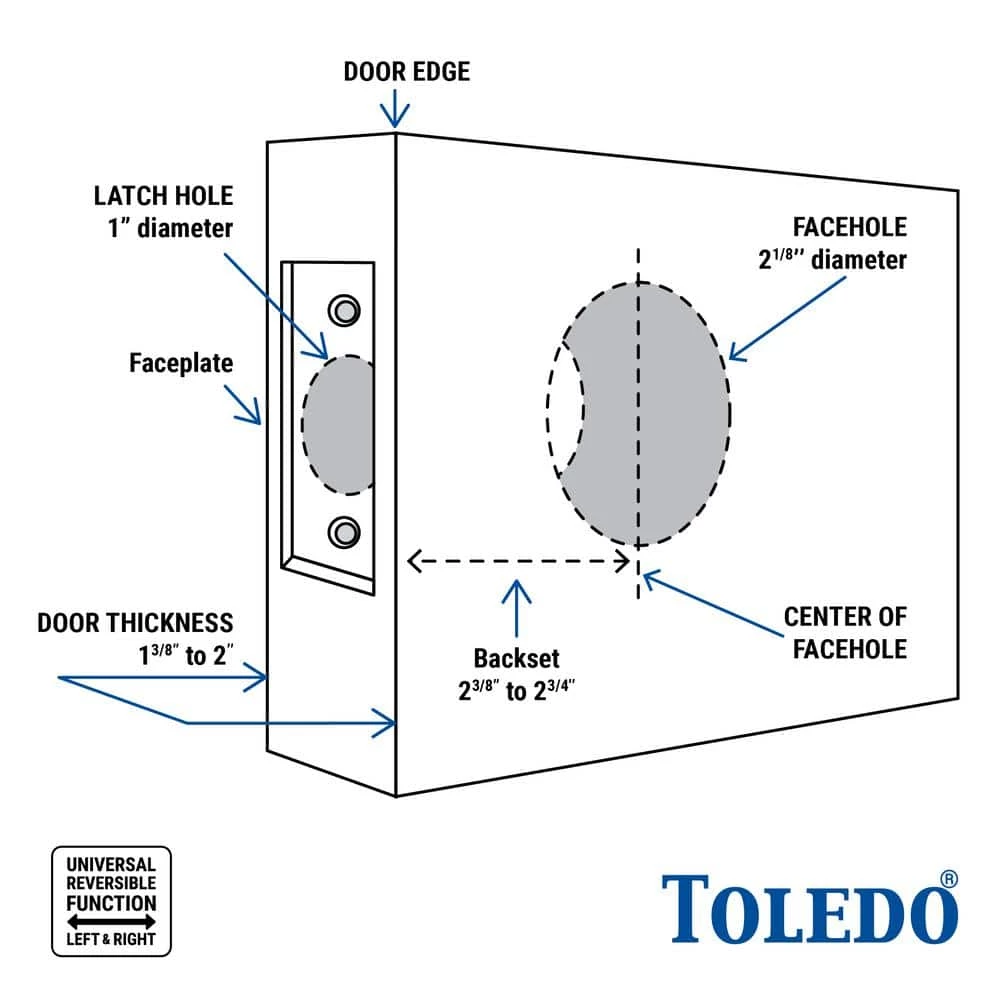

- Backsets from 2 3/8 in. (60 mm) to 2 3/4 in. (70) mm
- Door thickness – 1-3/8 in. a 2 in.
- Latch hole diameter – 1 in. (25.4 mm)
- Face hole diameter – 2-1/8 in. (54 mm)
- Lifetime warranty
| Application Type | Entry w/ Deadbolt |
|---|---|
| Knob/lever housing width (in.) | 2.3 |
| Deadbolt Strike Width (in.) | 0.75 in |
| Deadbolt Throw Length (in.) | 0.06 in |
| Deadbolt Trim Ring Diameter (in.) | 0.72 in |
| Faceplate Depth (in.) | 1 in |
| Faceplate Height (in.) | 3.75 in |
| Faceplate Width (in.) | 2.25 in |
| Handle grip length (in.) | .5 |
| Inside top plate length (in.) | 2.7 |
| Inside top plate width (in.) | 2.7 |
| Knob/lever bore hole diameter (in.) | 2.125 |
| Knob/lever cross bore diameter (in.) | .24 |
| Knob/lever housing height (in.) | 4.25 |
| Knob/lever strike height (in.) | 2.75 |
| Deadbolt Cross Bore Diameter (in.) | 2.125 in |
| Knob/lever strike width (in.) | .75 |
| Knob/lever throw length (in.) | .01 |
| Maximum Door Thickness (in.) | 2 |
| Minimum Door Thickness (in.) | 1.375 |
| Outside bottom handle plate length (in.) | .5 |
| Outside bottom handle plate width (in.) | 1.5 |
| Outside key plate length (in.) | .75 |
| Outside key plate width (in.) | 2.6 |
| Outside top handle plate length (in.) | .6 |
| Outside top handle plate width (in.) | 2.6 |
| Projection (in.) | 2.375 |
| Strike Plate Height (in.) | 2.75 in |
| Deadbolt Strike Height (in.) | 2.25 in |
| Deadbolt Bore Hole Diameter (in.) | 1 in |
| Battery Type | AA Battery |
| Hardware Included | Lock with Handleset |
| Commercial/Residential | Residential |
| Deadbolt Type | Single Cylinder Deadbolt |
| Deadbolt strike | Square corner |
| Door Handing | Universal |
| Door Lock Style | Modern |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Electronic/Mechanical | Electronic |
| Features | Adjustable Backset,Automatic Relocking,Delay Timer,Easy Installation,Indicator Light(s),Low Battery Indicator Light,Rekeyable |
| Finish | Satin Stainless Steel |
| Handleset Product Type | 2 Piece Front & Back |
| Hardware Color Family | Silver |
| Hardware Finish Family | Black |
| Holding force (lb.) | 75 |
| Backset Size (in.) | 2-3/8 in |
| Included | Drilling Template,Installation Instructions |
| Keyway | KW1 |
| Knob/lever strike | Square corner |
| Lock Type | Keyed,Keypad |
| Material | Stainless Steel |
| Number of Batteries Required | 4 |
| Power Source | Battery |
| Product Weight (lb.) | 5.98 lb |
| Returnable | 90-Day |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Total Number of Keys Included | 3 |
| Certifications and Listings | BMHA Certified |
| Manufacturer Warranty | Lifetime Warranty |
| Strike Plate Width (in.) | 1.5 in |
