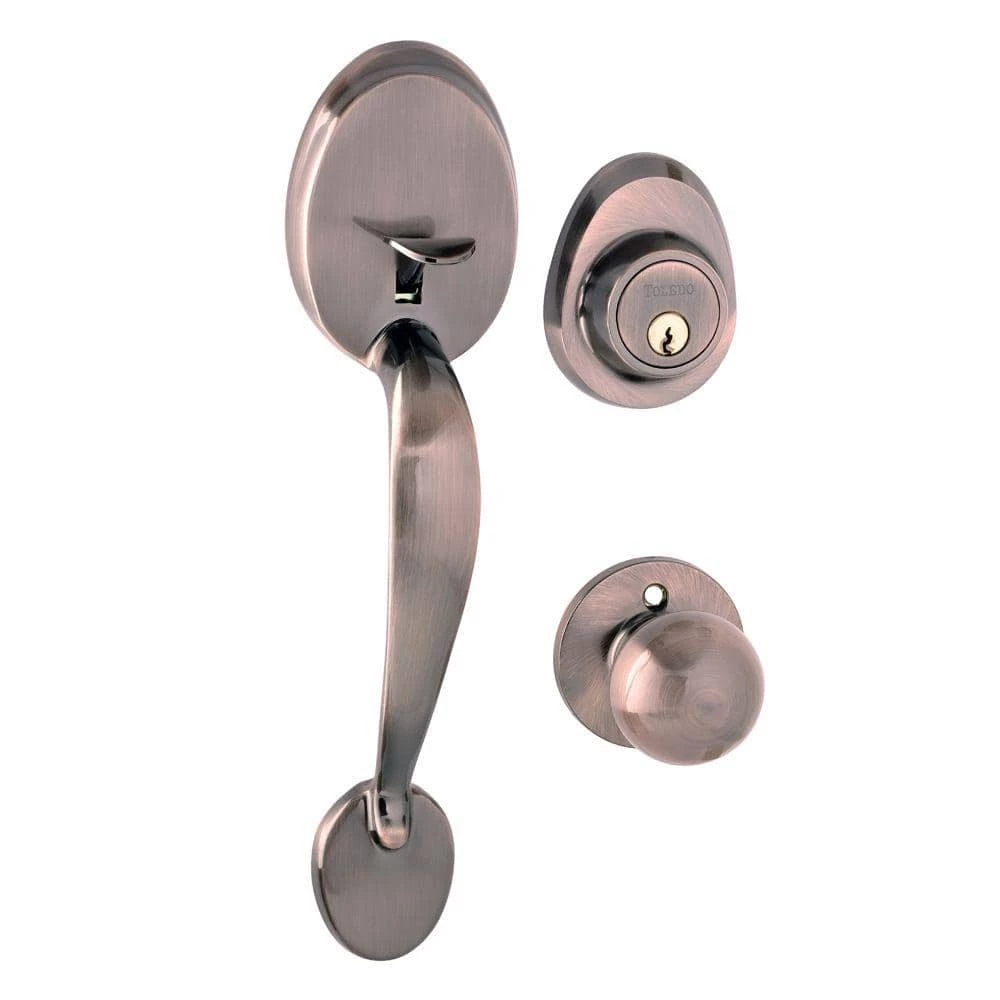

TOLEDO Fine Locks offers a well integrate combination of craftmanship and technology on their products such as the Cordoba Handleset. This weather resistant single cylinder handle provides a stylish but secure door lock with ANSI Grade 3 Compliance for trusted security measure. Furthermore, the mechanism components are proven to be anti-bump, anti-picking and pry-resistance for extra security, without mentioning the versatility of the universal left and right function.
- ANSI grade 3 compliance
- Anti-bump, anti-picking and pry resistance
- Universal left and rigth function
- Suitable for wood and metal doors

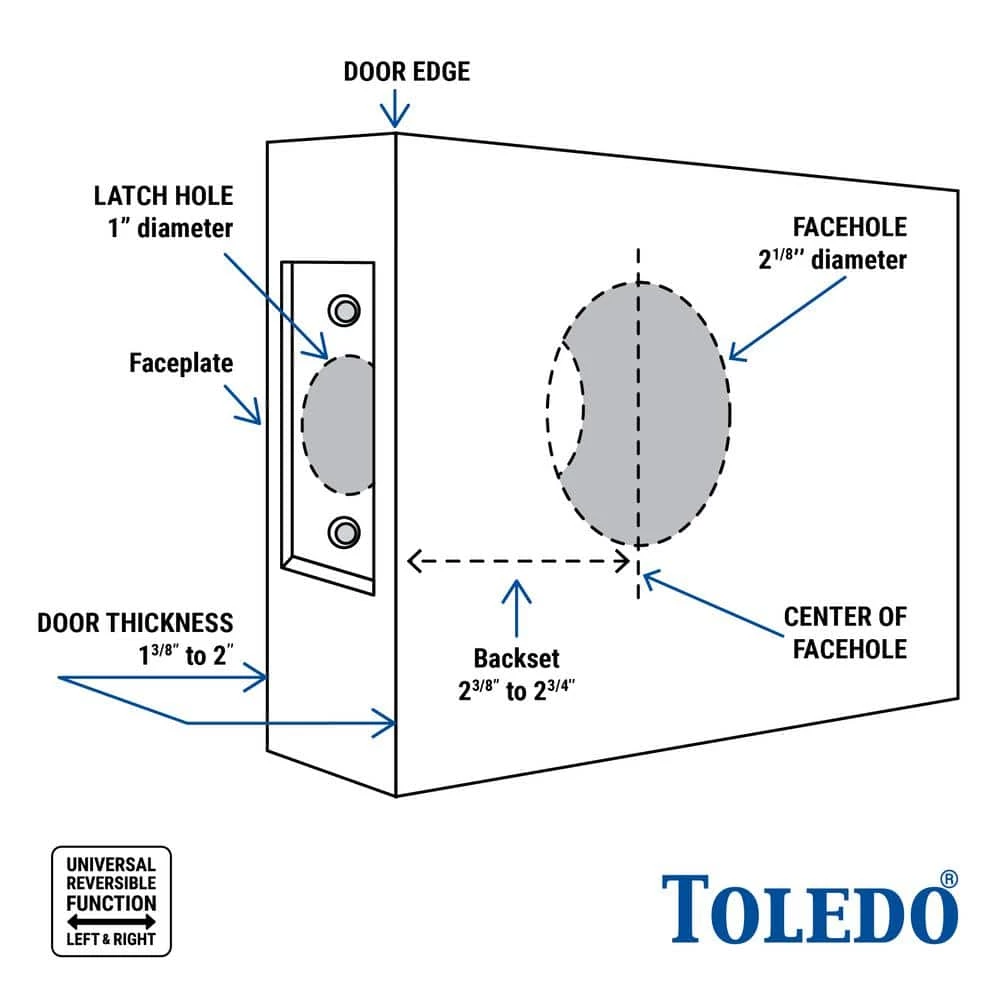

- Suitable for door with the following dimensions – 1.375 in. to 1.75 in.
- 3 keys included
- Lifetime waranty
| Application Type | Entry |
|---|---|
| Knob/lever housing width (in.) | 2.56 |
| Deadbolt Cross Bore Diameter (in.) | 1 in |
| Deadbolt Strike Height (in.) | 2.75 in |
| Deadbolt Strike Width (in.) | 1.125 in |
| Deadbolt Throw Length (in.) | 0.938 in |
| Deadbolt Trim Ring Diameter (in.) | 2.49 in |
| Handle grip length (in.) | 11.91 |
| Inside top plate length (in.) | 2.25 |
| Inside top plate width (in.) | 1 |
| Knob/lever bore hole diameter (in.) | 2.12 |
| Knob/lever cross bore diameter (in.) | 1 |
| Knob/lever housing height (in.) | 2.56 |
| Knob/lever strike height (in.) | 2.748 |
| Backset Size (in.) | Adjustable |
| Knob/lever strike width (in.) | 1.102 |
| Knob/lever throw length (in.) | .5 |
| Lever Grip Length (in.) | 2.56 in |
| Maximum Door Thickness (in.) | 1.75 in |
| Minimum Door Thickness (in.) | 1.375 |
| Outside bottom handle plate length (in.) | 3 |
| Outside bottom handle plate width (in.) | 2.5 |
| Outside key plate length (in.) | 3 |
| Outside key plate width (in.) | 2.5 |
| Outside top handle plate length (in.) | 4 |
| Outside top handle plate width (in.) | 3 |
| Deadbolt Bore Hole Diameter (in.) | 2.12 in |
| Assembled Width (in.) | 15.5 in |
| Commercial/Residential | Residential |
| Included | Installation Instructions |
| Deadbolt Type | Single Cylinder Deadbolt |
| Deadbolt strike | Square corner |
| Door Handing | Universal |
| Door Lock Style | Classic |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Electronic/Mechanical | Mechanical |
| Features | Adjustable Backset,Easy Installation |
| Finish | Antique Copper |
| Handleset Product Type | 2 Piece Front & Back |
| Hardware Color Family | Silver |
| Hardware Finish Family | Silver |
| Keying Type | Keyed Alike |
| Assembled Height (in.) | 18 in |
| Keyway | No Keyway |
| Knob/lever strike | Square corner |
| Lever style | Straight |
| Lock Type | Keyed |
| Material | Steel |
| Product Weight (lb.) | 3.96 |
| Returnable | 90-Day |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Total Number of Keys Included | 3 |
| Certifications and Listings | ADA Compliant |
| Manufacturer Warranty | Lifetime Warranty, Anti-Bump System |
| Assembled Depth (in.) | 16 in |
| Projection (in.) | 2.375 |
